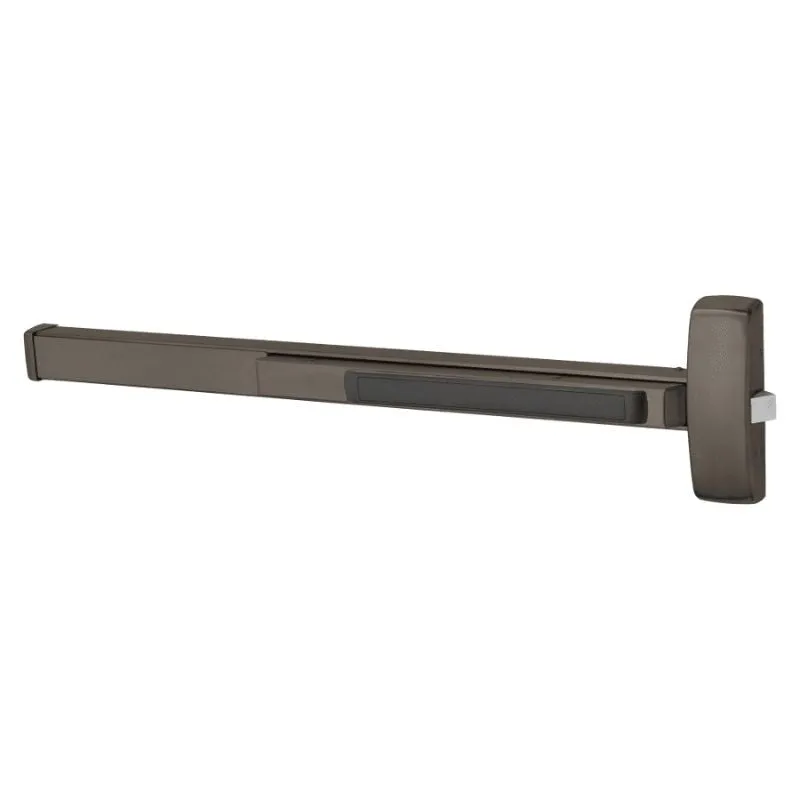

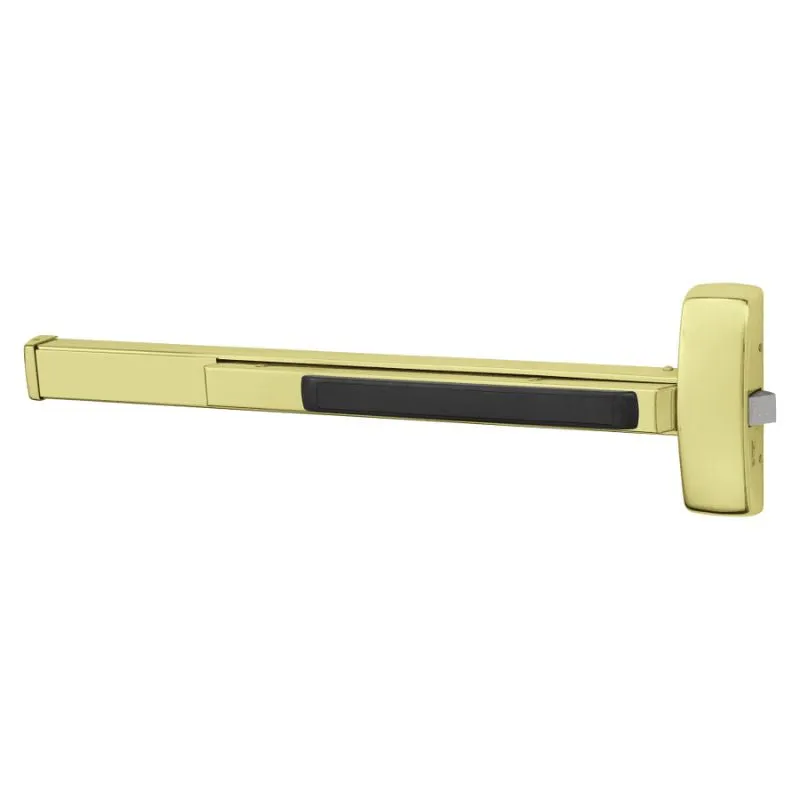

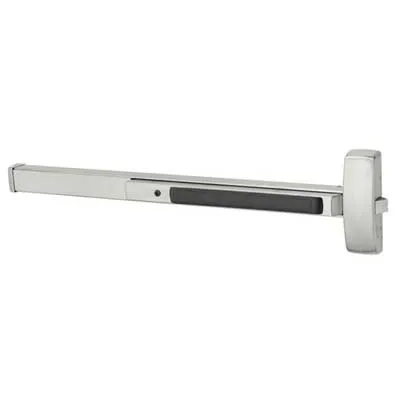

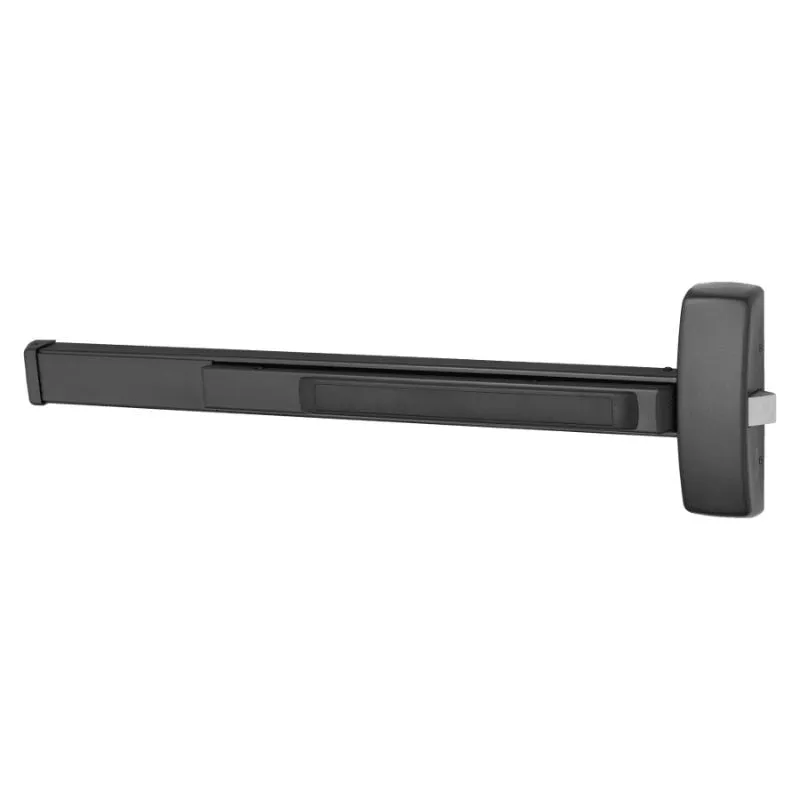

The Sargent 12-8888-F Reversible Fire Rated Rim Exit Device is a 33"-36" Bar, Multi-Function, Grade One Surface Mounted Fire Rated Panic Bar. The Sargent 8888 Is Non-Handed Seven Functions Determined By The Function Of The Trim.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
Product Specs
| Vendor | Assa Abloy |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" |
| Hand | Non-Handed |
| Dogging Options | Less Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
