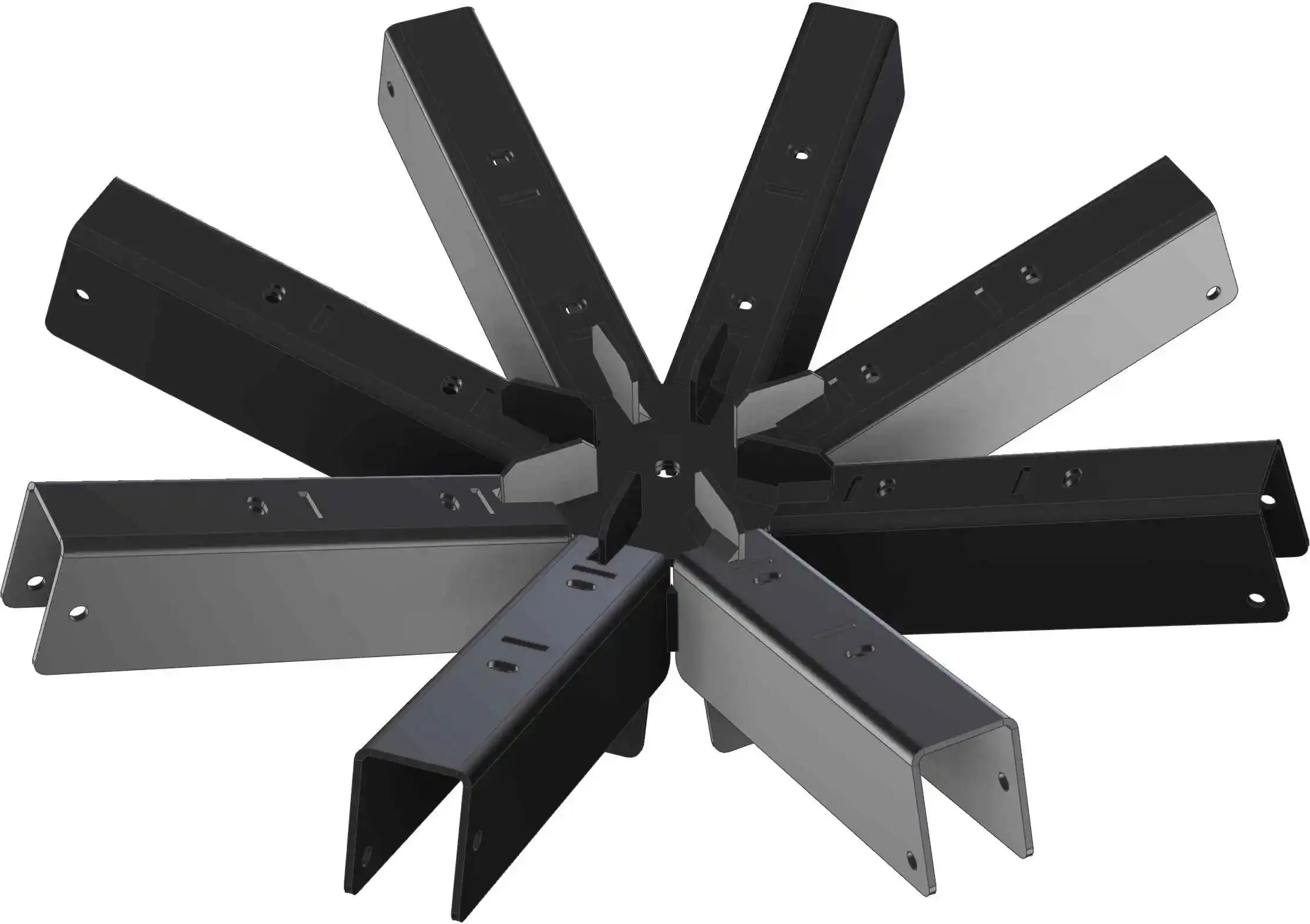

DIY Heavy Duty Iron 8-Way Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

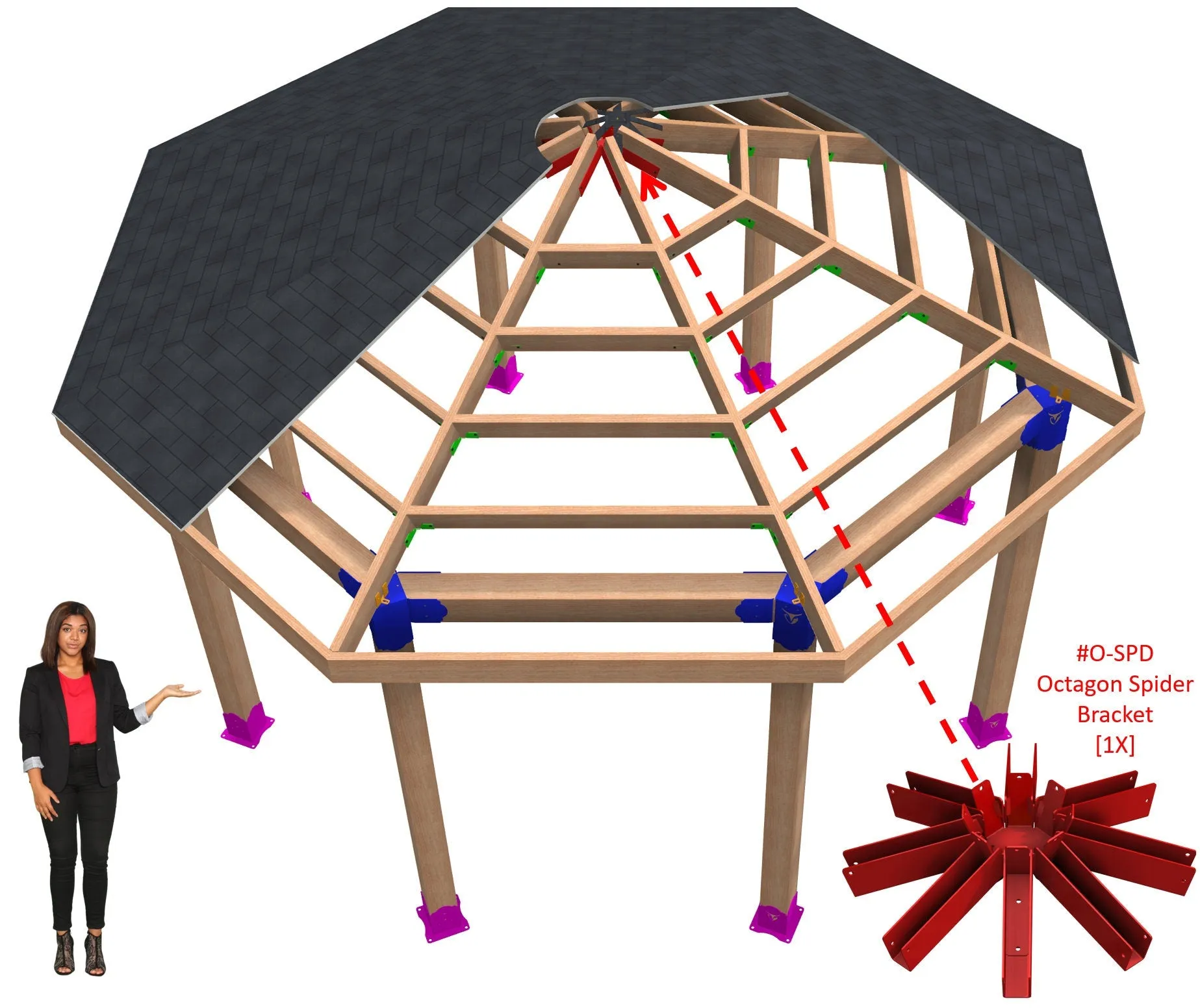

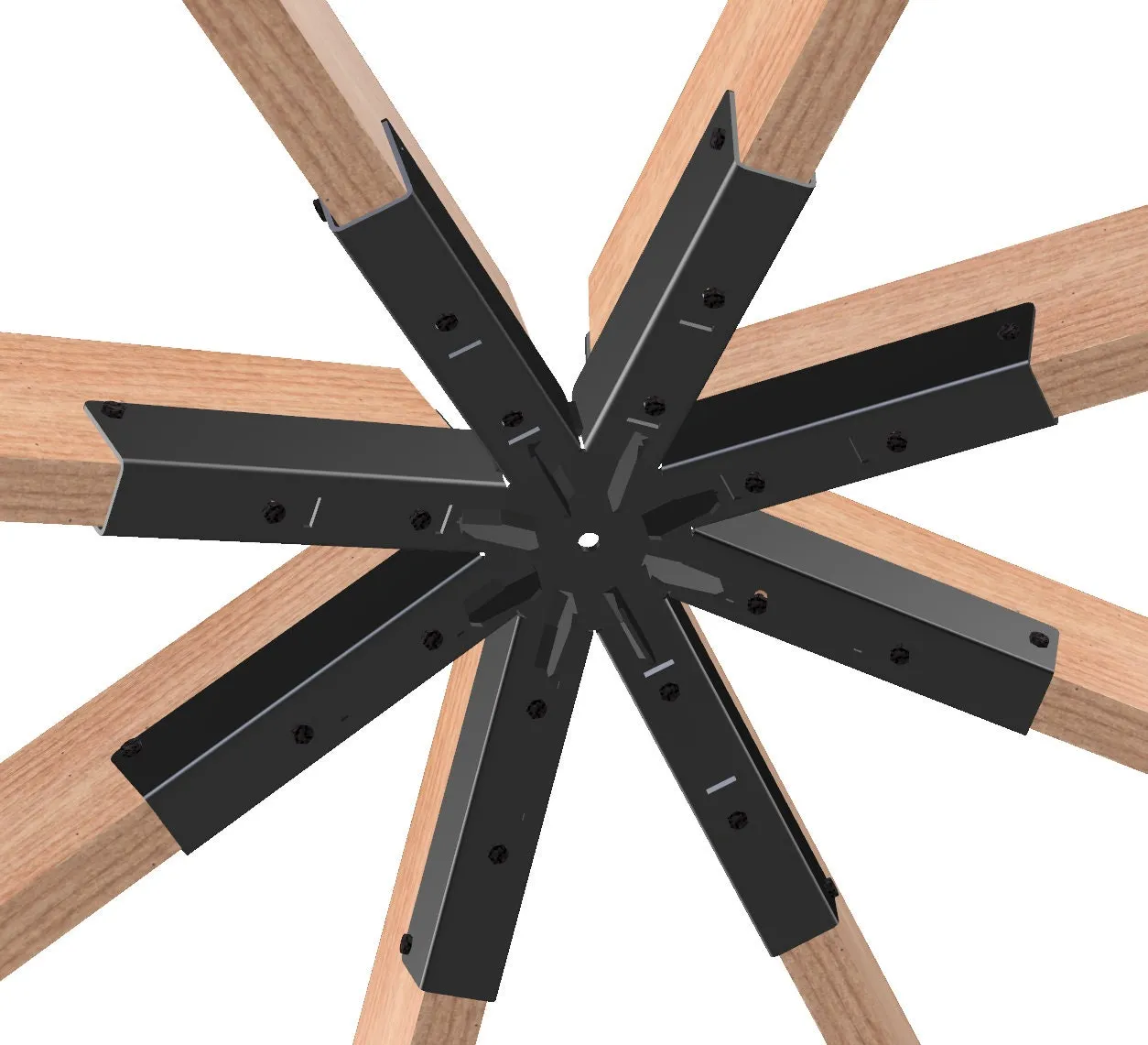

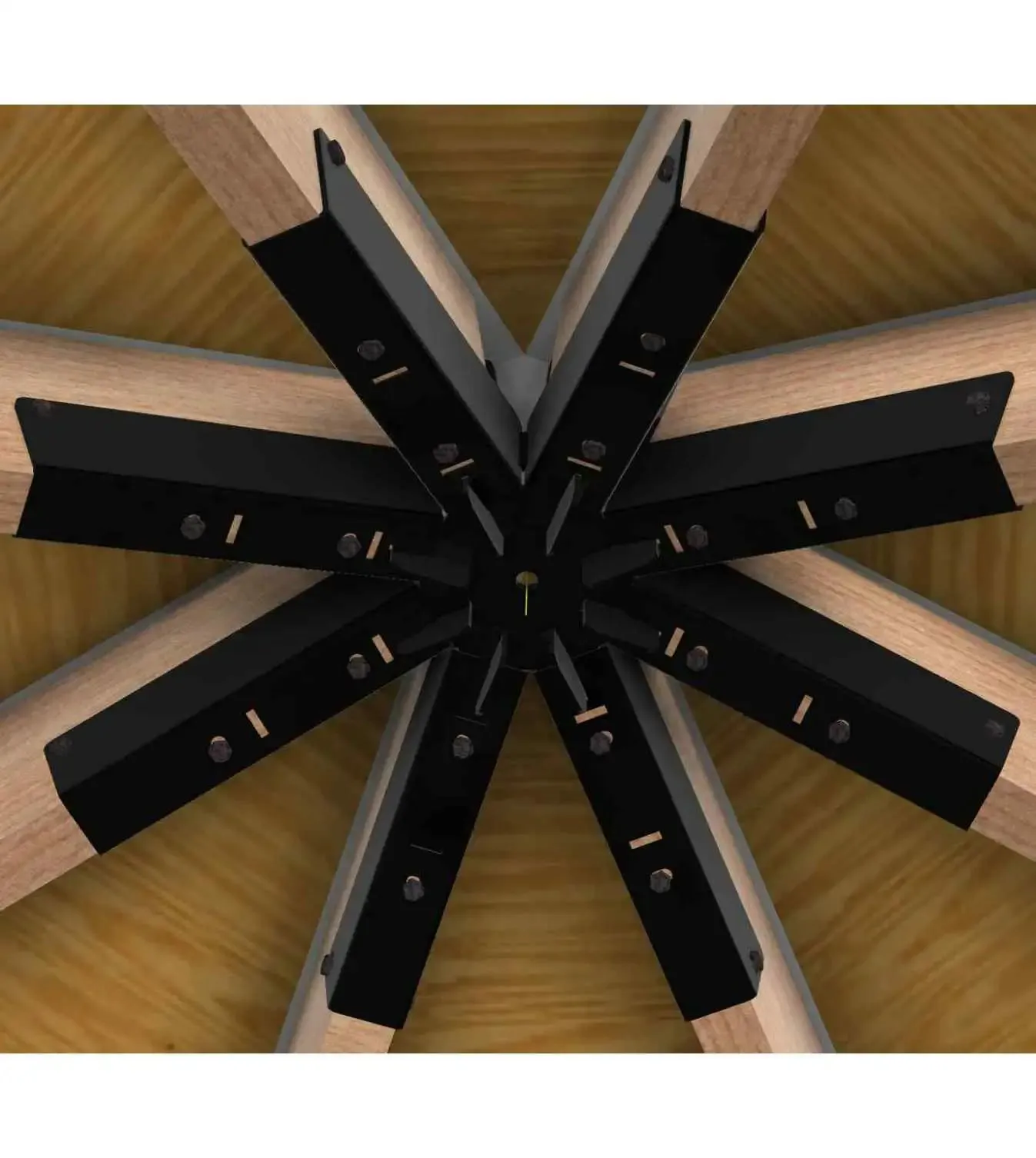

Super Heavy Duty Octagon 8-way spider bracket creates a perfect 8-way rafters joints at the peak of the octagon roof. Allows universal size octagon roof ranging from 8 feet wide to 24 feet wide.

When used together with the , , and , you can build a super-strong architectural octagon solid roof.

This bracket is used to build our , , , and .

This octagon 8-way spider bracket yields a super-strong 4-12 pitch roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.

This strong roofed structure will be a permanent structure for any geographic location.
The Octagon 8-way steel brackets eliminates all wood joinery skills and work making it ideal for all DIY enthusiasts and contractors.

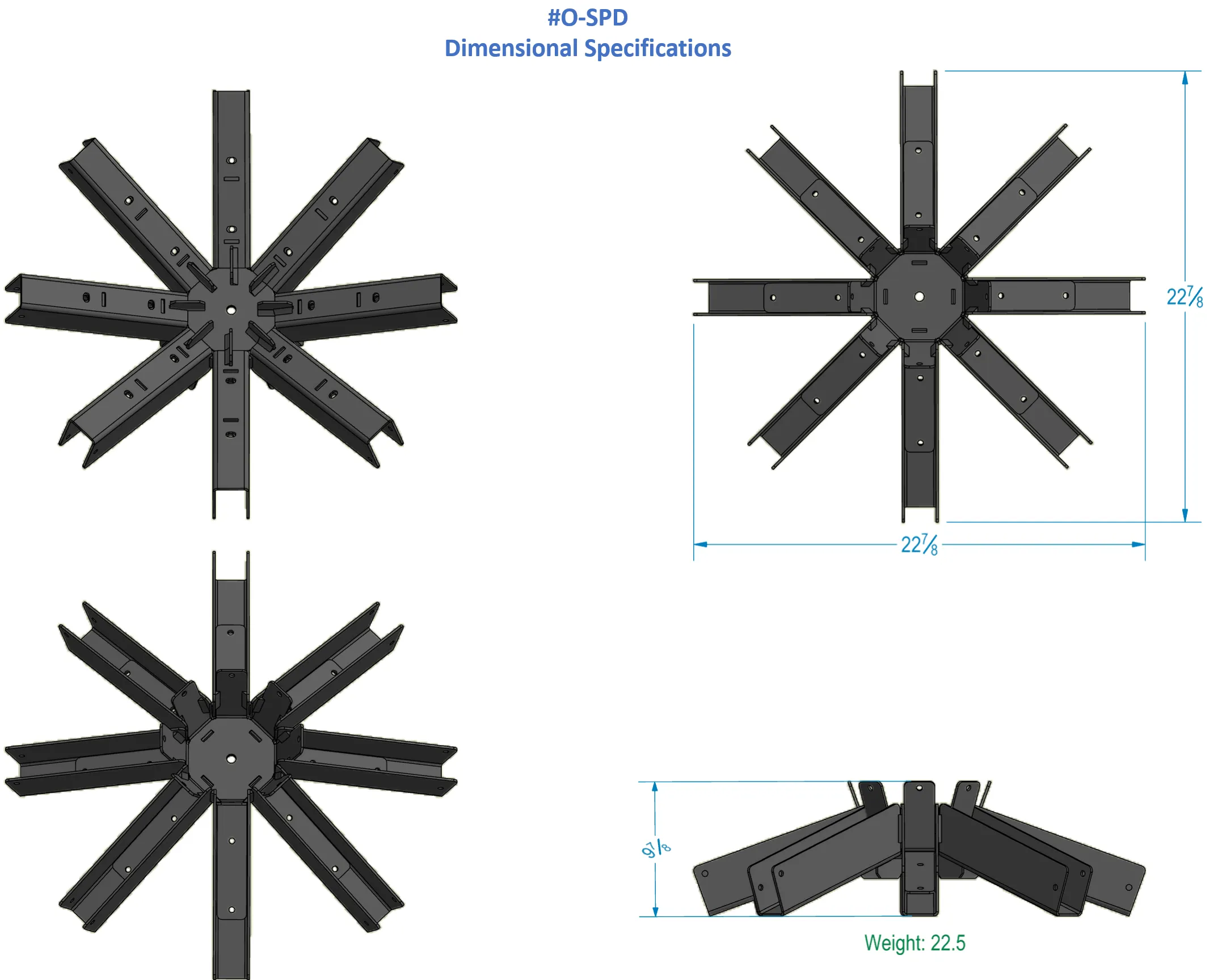

This bracket is made of double layered 1/8" thick steel, welded structure coated with powder paint for permanent rust proofing and durability.

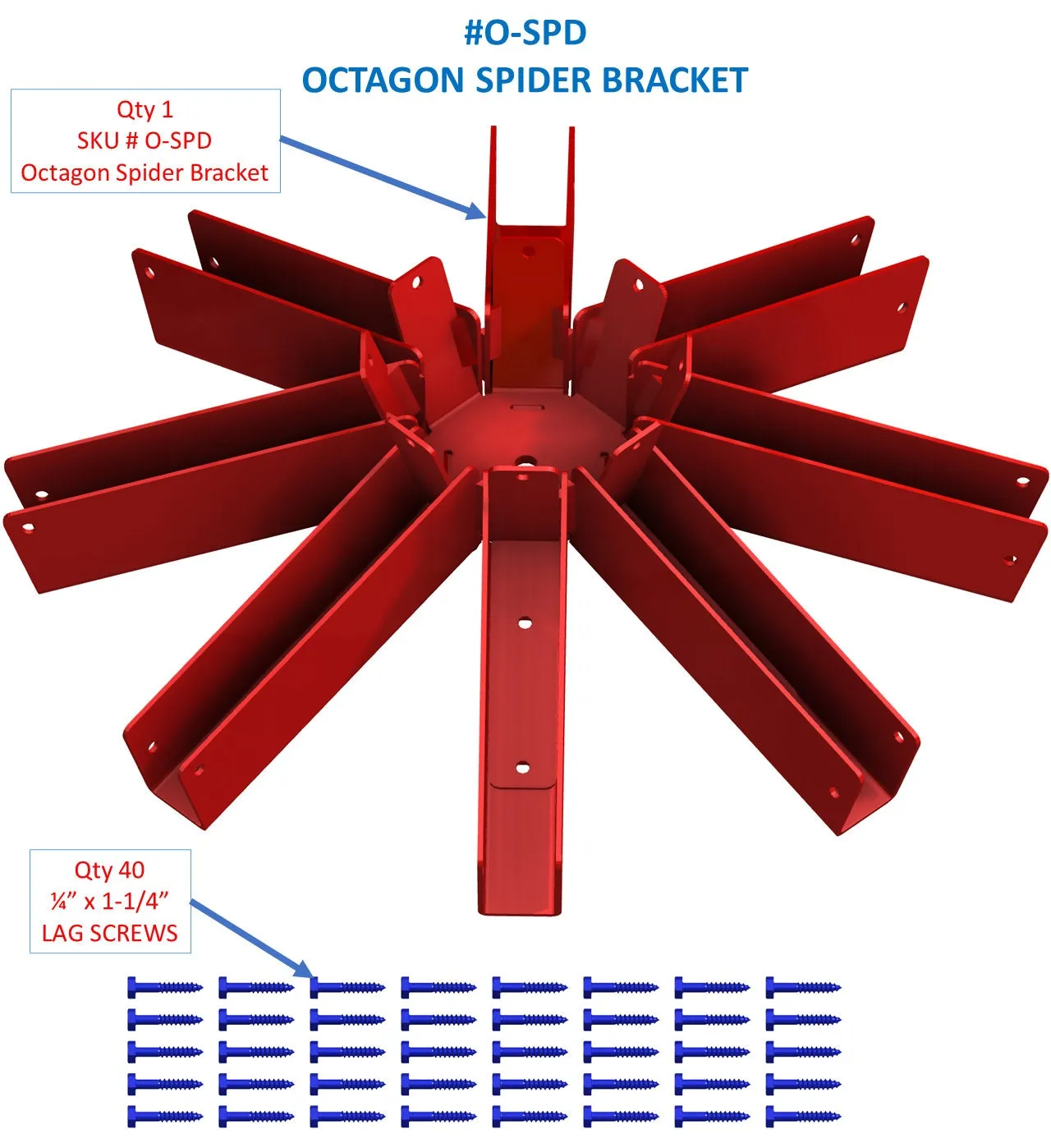

The octagon spider bracket package includes:
Qty 1, of Roof Peak Octagon 8-way Spider Bracket.
Qty 40, of 1/4" x 1-1/2" Lag Screws.

• Roof rafters' pitch angle is fixed at 21.5-degrees, close to 4-12 pitch.
• Roof rafters and cross-tie beam lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
• Roof rafters’ size to be 2x6 for octagon widths up to 14 feet and 2x8 for widths more than 14 feet.
• Cross-tie support beams are required every 24" between adjacent rafters to support roof deck plywood/OSB boards and to support snowloads.

This DIY Heavy Duty Iron Octagon 8-Way Spider Bracket is also available at and at .
