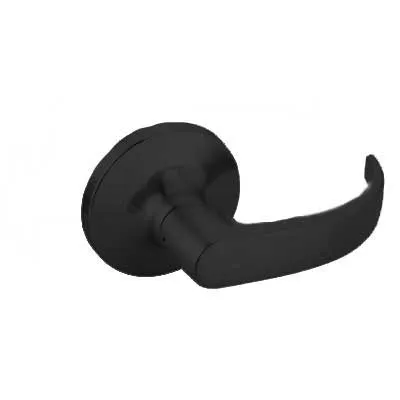

Accentra (Formerly Yale) PB4655LN-BSP Single Dummy Lever Trim - Grade 2, PB Lever, 2 3/4 Backset, BSP Black Suede Powder Coat
Accentra PB4655LN-BSP Series grade 2 cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra PB4655LN-BSP is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.
Technical Specifications
| Function |
55- Single Dummy
|
| Function Family | Dummy |
| Lever/Knob Design |
PB Pacific Beach
|
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
|
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
|
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Accentra PB4655LN-BSP Specifications
| Door Thickness: | Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm) |
| Backset: | 2-3/4" |
| Strike: | ANSI 1-1/4" standard |
| Functions: | Single Dummy Trim |
| Latchbolt: | Stainless steel with 1/2" throw |
| Warranty: | 3-Year Limited Warranty |
Accentra PB4655LN-BSP Certifications
| ANSI/BHMA: | Grade 2 |
| UL-cUL: | All locks listed for use on fire doors having a rating up to and including 3 hours. |
| ADA: | Meets A117.1 Accessibility Code |
